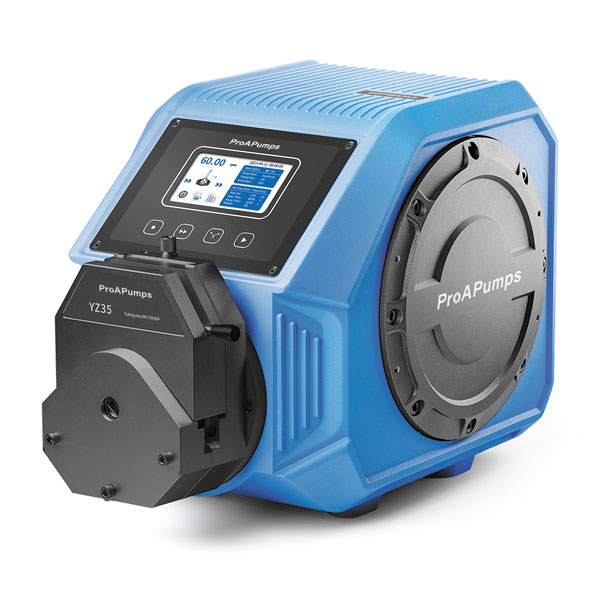

Industrial Waterproof Peristaltic Pump (Blue Pumps)

Industrial waterproof peristaltic pump (Blue Pumps) Industrial Cased Peristaltic Pump (ICPB) Series, IP 66/IP 67/IP68 Rating NameRPMPump HeadTubingFlow Range (mL/min) ICPB3000.1-300 rpmDZ-45#1931.9-5660 #883.5-10500 #1894.7-13980 #1916.3-18780 #9210.4-28150 ICPB3500.1-350 rpmDY35#26, #73, #821.28-13755 DY25#15, #24, #35, #360.42-4340 DY25-II (Dual Channel)#15, #24, #35, #360.35-8278 DY15#13, #14, #19, #16, #25, #17, #180.01-3337 ICPB6000,1-600 rpmYZ35#26, #73, #820.7-12000 DZ25-6L#15, #24, #35, #360.3-6000 Features High Precision Servo Motor 3 drive options: 150 rpm, 350 rpm, 600 rpm Flow rates to 28.15 L/min (7.4 GPM) Control range in 0.1 rpm increments Remote Analog/Digital, MODBUS control options Keypad uses optional security lock 5-year warranty against manufacturer’s defects About ProA Pumps Aluminum ICPB Series The ProA ICPB-series pump is an industrial waterproof peristaltic pump designed for demanding environments. These pumps are are IP66/IP67/IP68 rated (NEMA 4X/NEMA 6P) pumps (request IP68, IP66/67 is standard). Built for the most demanding working environments such as high heat and humidity. The aluminum alloy casing has excellent heat dissipation, has an automated pressure control device to maintain internal/external pressure, and is tested to EMC standards. The pump motor will shut off once the pump head is opened. Simple-to-use color LCD touchscreen displays working status with minimal key pressing. Accurate fluid transfers are a breeze using the onboard calibration screen. The ProA ICPB Series industrial waterproof peristaltic pump is compatible with a variety of control systems for remote use. Multiple fluid transfer options: Continuous: Fluid transfer mode at set flow rate, speed, and/or fixed volume Volume dispensing: Set volume, flow rate, number of repeats, pause time Flow Rate Dispensing: Set volume, flow rate, number of repeats, pause time Fixed Time and Volume Dispensing: Set volume, time, number of repeats, pause time Speed Dispensing: Set speed (rpm), time, repeat numbers, pause time Specifications Specifications EM StandardIEC 60529:2013, Q/BSC01-2019 Housing materialAluminum alloy Speed range0.1- 600rpm Speed resolution0.01 rpm Display4.3 inch-industrial grade-colorful LCD screen Control methodTouch screen, mechanical buttons, external signal, communication Working modeFlow rate, Dispensing mode Flow rate modeContinuous transfering according to the set flow rate motor speed Dispensing modeFixed time and volume dispenseing: Set the dispensing volume, dispensing time, repeat number and pause time Fixed volume dispensing: Set the dispensing volume, flow rate, repeat number and pause time Speed/time dispensing: Set the motor speed (rpm), dispensing time, repeat number and pause time Dispensing volume0.1ml- 9999L Dispensing time0.1sec- 9999h Pause time0.5sec- 9999h Repeat number1-9999 times, 0 means unlimited times Calibration functionInput actual volume and calibrate automatically Back suction angle0- 3600 CommunicationRS485, RS232 Communication protocolModbus protocol (RTU mode) External control Speed signal0.5V, 0-10V, 4-20mA (for option) External control signal inputActive switch signal (5-24V) controls start/stop, direction and full speed; Passive switch signal control start/stop Signal outputOpen collector output working status Lock screen functionPrevent accidental touches Password protection functionPrevent misoperation Drive dimension428mm* 285mm* 335mm (L*W*H*) Power supplyAC 220v ± 10% 50Hz/60Hz Rated power300W Related Humidity Condition temperature0- 400C IP rateIP66/IP67/IP68 Drive weight21.5kg View All Pump Models View All Tubing
