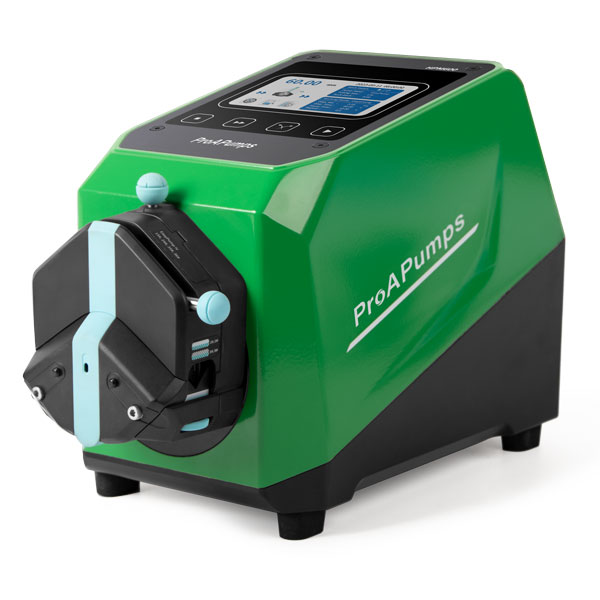

Industrial Peristaltic Pump for Washdown Applications (Green Pumps)

Industrial peristaltic pump for washdown applications (Green Pumps) Industrial Cased Peristaltic Pump (ICPG) Series, IP 66 Rating NameRPMPump HeadTubingFlow Range ICPG6000.1-600 rpmEP I (Fixed Pressure)#13, #14, #19, #16, #25, #17, #180.0053-2580 EP II (Fixed Pressure)#15, #24, #35, #360.18-3100 EP III (Adjustable Pressure)#13, #14, #19, #16, #25, #17, #180.0053-2580 EP IV (Adjustable Pressure)#15, #24, #35, #360.18-3100 EP V (Fixed Pressure)#13, #14, #19, #16, #250.0053-1180 EP VI (Adjustable Pressure)#13, #14, #19, #16, #250.0053-1180 DZ25-3L#15, #24, #35, #360.211-3600 Features 600 rpm drive Flow rates to 3.6 L/min (57 GPH) Control range in 0.1 rpm increments Remote Analog/Digital, MODBUS control options Keypad uses optional security lock 5-year warranty against manufacturer’s defects About ProA Pumps Aluminum ICPG Series The ProA ICPG Series pump is an industrial peristaltic pump for washdown applications, designed to withstand harsh environments where frequent cleaning is required. This IP66-rated (NEMA 4X) pump features an aluminum alloy casing with excellent heat dissipation and is tested to EMC standards. The pump motor will shut off once the pump head is opened. The simple-to-use color LCD touchscreen displays working status with minimal key pressing. Accurate fluid transfers are a breeze using the onboard calibration screen. The ProA ICPG industrial peristaltic pump for washdown applications is compatible with a variety of control systems for remote use. Multiple fluid transfer options: Continuous: Fluid transfer mode at set flow rate, speed, and/or fixed volume Volume dispensing: Set volume, flow rate, number of repeats, pause time Flow Rate Dispensing: Set volume, flow rate, number of repeats, pause time Fixed Time and Volume Dispensing: Set volume, time, number of repeats, pause time Speed Dispensing: Set speed (rpm), time, repeat numbers, pause time Specifications Specifications EM StandardIEC 60529:2013, Q/BSC01-2019 Housing materialAluminum alloy Speed range0.1-600 rpm Speed adjustment resolution0.01 rpm Display4.3 inch-industrial grade-colorful LCD screen Control modesTouch screen, mechanical keypad, external control signal control, communication control Working modesTransfering mode, dispensing mode (Fixed volume, dispensing, speed dispensing) Transfering modesContinuous operation at set flow rate and speed Dispensing modeDispensing: Set volume, time, repeat numbers, pause time Dispensing: Set volume,flow rate, repeat numbers, pause time Speed Dispensing: Set speed (rpm), time, repeat numbers, pause time Dispensing volume range0.1ml- 9999L Dispensing time range0.1s- 9999h Pause time range0.5s- 9999h Repeat numbers1-9999 times, 0 means unlimited times CalibrationAutomatic calibration after inputing actual running liquid volume Back suction angle0- 3600 Communication interfaceRS485 Communication protocolModbus protocol (RTU mode) External control Speed signal0.5V, 0-10V, 4-20mA (for option) External control signal inputActive switch signal (5-24V) controls start/stop, direction,passive switch signal controls start/stop Signal outputOpen collector output operation status; 4-20mA output Open cover to stop pumpYes, user safety to prevent misoperation Three levels of permissionsReasonable configuration of operation permissions Drive dimension274mm* 160mm* 221mm (L*W*H*) Power supplyAC110- 220V, 50/60Hz Rated power110w Working environment0- 400C Driveweight6.2kg Relative humidity Protection levelIP66 View All Pump Models View All Tubing
