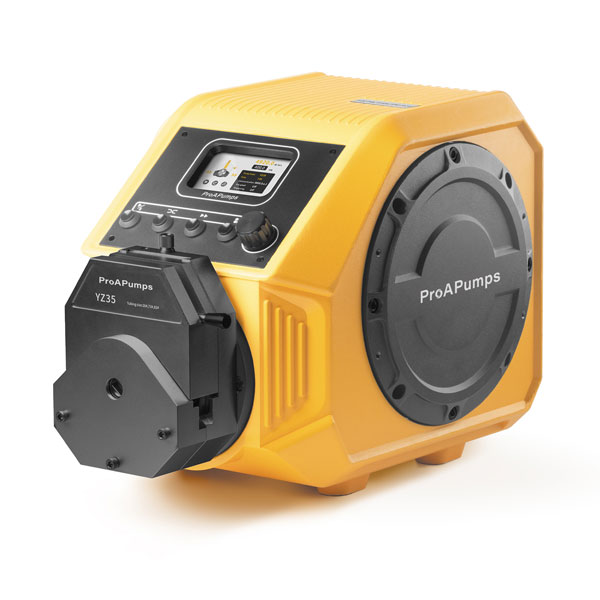

Explosion-Proof Peristaltic Pump (Yellow Pumps)

Explosion-proof peristaltic pump Explosion Proof Peristaltic Pumps, IP66 Rating NameRPMPump HeadTubingFlow Range (mL/min) ICPYEx3000.1-300DZ45-I/DZ45-II#193, #88, #189, #191, #921.9-28150 ICPYEx3500.1-350DY35#73, #822.255-12740 DY25#15, #24, #35, #360.42-4340 DY25-II (Dual Channel)*#15, #24, #35, #360.35-8278 DY15#13, #14, #19, #16, #25, #17, #180.01-3337 ICPYEx6000.1-600YZ35-II#26, #73, #820.7-12000 DZ25-6L#15, #24, #35, #360.1-6000 DZ25-3L#15, #24, #35, #360.211-3600 *Coming Soon Features Tested IEC 60079 explosion proof standards 3 drive options: 150 rpm, 350 rpm, 600 rpm Flow rates to 28.15 L/min (7.4 GPM) Control range in 0.1 rpm increments Remote Analog/Digital, MODBUS control options Keypad uses optional security lock 5-year warranty against manufacturer’s defects About ProA Pumps Aluminum ICPYEx Series Safe & Reliable Liquid Transfer for Hazardous Environments The chemical and pharmaceutical industry often handles toxic and volatile substances like organic solvents and acids. An explosion-proof peristaltic pump offers a safe and reliable solution for transferring these hazardous liquids. The ProA ICPEx Series explosion-proof peristaltic pump is designed for use in explosive atmospheres, complying with stringent ATEX standards. These pumps are rigorously tested for electromagnetic compatibility (EMC) and grounded to prevent static electricity buildup. These pumps are ideal for safely transferring a wide range of flammable liquids, including ethyl ether, ethanol, acetone, and benzene, across various industries such as pharmaceuticals, petrochemicals, and chemical processing. Key Applications: Solvent Transfer: In chemical production, various solvents and solutions need to be transferred from one location to another. The explosion-proof peristaltic pump provides precise flow control and stable performance, ensuring safe solvent transfer for Methyl Chloride, Acetonitrile, Benzyl alcohol, ethanol, and more. Chemical Mixing: In some chemical reaction processes, different chemicals need to be mixed to facilitate the reaction. Explosion-proof pumps can deliver different chemicals to the reactor vessel in predetermined proportions to be mixed. Acid & Alkali Liquid Transfer: Many chemical/pharmaceutical processes require the transfer of acidic or alkaline liquids such as sulfuric acid, hydrochloric acid, sodium hydroxide, ammonium hydroxide, etc. The selection knob and four rubberized buttons are waterproof, dustproof, and explosion-proof, ensuring durability in hazardous environments. Accurate fluid transfers are made easy with the onboard calibration screen. The ProA ICPEx Series explosion-proof peristaltic pump is compatible with a variety of control systems for remote use and supports multiple fluid transfer options: Continuous: Fluid transfer mode at set flow rate, speed, and/or fixed volume Volume dispensing: Set volume, flow rate, number of repeats, pause time Flow Rate Dispensing: Set volume, flow rate, number of repeats, pause time Fixed Time and Volume Dispensing: Set volume, time, number of repeats, pause time Speed Dispensing: Set speed (rpm), time, repeat numbers, pause time Read article: What Makes a Pump Explosion-Proof? Specifications Specifications IEC 60079 Markingɛx II2G Ex db IIC T4 Gb ɛx II2D Ex tb IIIC T1300C StandardsEN IEC 60079-0:2018 A11:2024;EN IEC 60079-1:2014 A11:2024;EN IEC 60079-31:2018 Housing materialAluminum Alloy Speed rangeICPY-600: 0.1-600 RPM ICPY-300: 0.1-300 RPM Speed resoution0.1rpm Display4.3 inch-industrial grade- True color LCD screen ControlMechanical button, explosion proof knob, external control signal and communication Working modeFlow rate mode, Dispensing mode Flow rate modeContinuous transferring according to the set flow or motor speed Dispensing modeSet the dispensing volume, dispensing time, pause time and repeat numbers Dispensing volume0.1ml- 9999L Dispensing time0.1sec- 9999hour Pause time0.5sec- 9999hour Repeat number1-9999 times, 0 represents unlimited Calibration functionInput actual volume and calibration automatically Back suction angle0-360 degrees CommunicationRS485 Communication protocolModbus protocol (RTU mode) External control speed signal0-5V, 0-10V, 4-20mA optional External control signal inputActive Switch signal (5-24V) control start/stop, direction and full speed; passive switch signal control start/stop External control signal outputOpen collector output working status Drive dimension (L x W X H)458 X 285 X 335mm Power supplyAC110-220V±10%,50Hz/60Hz Rated power300W Relative humidity Condition temperature40-Degrees C IP rateIP66 Drive weight30.1kg View All Pump Models View All Tubing
